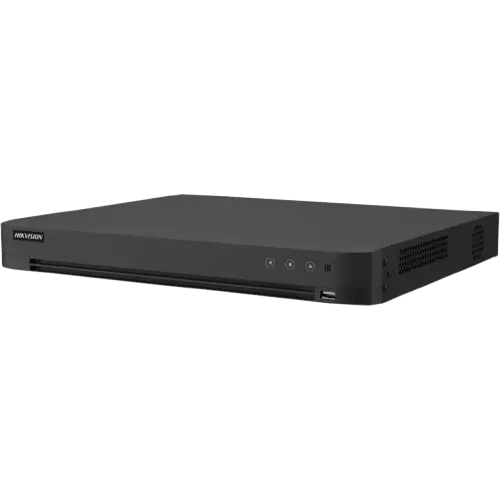

DVR Hikvision 32 Channels 3K / 5MP 2HDD IDS-7232HQHI-M2/XT electofire
- Facial Recognition
- Face Picture Library
Up to 16 face picture libraries ;
HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
- Face Picture Comparison (Captured from Camera)4-ch face picture comparison alarm (HD analog camera)
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects
like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle AnalysisUp to 8-ch (advanced model)
- Facial Detection
- Facial Detection and Capture
Face picture detection, face picture searchïŒ
4-ch face picture capture
- Video and Audio
- IP Video Input8-ch (up to 40-ch), each up to 6 MP resolution,
- Analog Video Input
32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output1-ch, 4K (3840 Ă 2160)/30Hz, 2K (2560 Ă 1440)/60Hz, 1920 Ă 1080/60Hz, 1280 Ă 1024/60Hz, 1280 Ă 720/60Hz
- VGA Output
1-ch, 1920 Ă 1080/60 Hz, 1280 Ă 1024/60 Hz, 1280 Ă 720/60 Hz
HDMI/VGA simultaneous output
- CVBS InputPAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 Ă 576, NTSC: 704 Ă 480
- Synchronous playback16-ch
- HDTVI Input3K(2960 x 1665)@25/20fps, 3K(3328x1504)@20fps,5 MP(2560 Ă 1944)@20 fps, 4 MP(2560 Ă 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- AHD Input5 MP(2560 Ă 1944)@20fps, 4 MP(2560 Ă 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- HDCVI Input3K(2880Ă1620)@25fps, 5MP(2592 Ă 1944)@20 fps, 4MP(2560 Ă 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)ïŒ32-ch via coaxial cable
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
When 1080p Lite mode is not enabled:
3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame Rate
Main stream:
When 1080p Lite mode not enabled:
For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Video Bitrate32 Kbps to 10 Mbps
- Dual-streamSupport main stream or sub stream
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Decoding
- Decoding Capabilityup to 24-ch 1080P@30fps
- Network
- Total Bandwidth256Mbps
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâą, HTTPS, ONVIF, ISUP
- Remote Connection128
- Network Interface
1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 12 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
- USB Interface
Front panel: 1 Ă USB 2.0
Rear panel: 2 Ă USB 3.0
- Alarm In/OutN/A (optional to support)
- General
- Power Supply12 VDC, 5 A
- Consumption†60 W
- Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
- Working Humidity10% to 90%
- Dimension (W Ă D Ă H)384 Ă 313 Ă 52 mm (15.1 Ă 12.3 Ă 2.0 inch)
- Weight†2.1 kg (4.6 lb)
